Garage gantry crane for sale

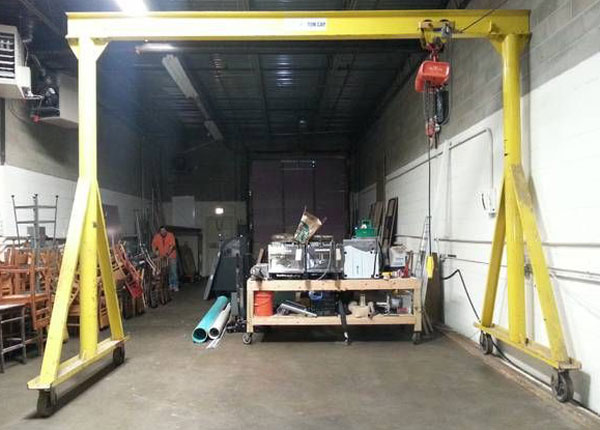

Garage Gantry Crane

Garage gantry crane is a kind of small gantry crane used to facilitate lifting work. This kind of crane doesn’t have large loading capacity, so it is not used for heavy duty material handling work. As a professional gantry crane manufacturer in China, Aimix provides and customizes various gantry cranes according to customers’ requirements, like portable gantry crane, adjustable gantry crane, light duty and heavy duty gantry crane, truss gantry crane and so on.

Garage gantry crane for sale
Garage Gantry Crane

Garage gantry crane parameters:

  • Lifting Capacity: 0.5t~10t
  • Span Length: 2~16m
  • Lifting Height: 2~12m
  • Lifting Speed: 0.9~7.2m/min
  • Trolley Traveling Speed: 11m/min
  • Crane Traveling Speed: 6m/min or manual
  • Working Class: A2
  • Provide Custom Option

Get a Free Quote

How to Get Quality and Reliable Garage Gantry Crane with Reasonable Price

Garage gantry crane is easy and convenient to install and maintain and it works with low noise. With quality gantry cranes, your lifting work efficiency can be greatly improved. Read on to know more about how to select and get reliable and durable garage gantry cranes:

  1. Make sure that you know your workplace well, including the dimension, condition, shapes, with these in mind, you will know what kind of crane you need, like the crane’s rated capacity, span, lifting height, which are determined by your workplace conditions and the material to be lifted. If the work occasion has no enough space, small or portable gantry cranes can be selected.
  2. Look for experienced and professional gantry crane suppliers that produce reliable and durable gantry cranes. Since there are so many crane suppliers on the markets nowadays, it is very important to choose the reliable one. You can get some information on the suppliers through internet because there are many companies have websites selling their products. By visiting the websites, you can know what kind of cranes they supply and you will have a general idea on the crane you need.
  3. Choose a crane manufacturer that provides gantry cranes with reasonable prices. Price is an important factor when you decide to make an order from a company. It doesn’t mean that the crane with the very cheap price is good, but the crane must be with reasonable price which is consistent with its quality.

 single girder gantry crane for sale
Single Girder Gantry Crane

Single girder gantry crane parameters:

  • Lifting Capacity: 3t~20t
  • Span Length: 8~35m
  • Lifting Height: 6~18m
  • Lifting Speed: 0.33~8m/min
  • Trolley Traveling Speed: 20m/min
  • Crane Traveling Speed: 20m/min
  • Working Class: A3, A4
  • Provide Custom Option

Get a Free Quote

Features and Safety Protections of Gantry Cranes

Aimix garage gantry cranes are easy to install and maintain; they have reasonable structure and favorable performance; they have smooth starting and stopping, and safe and reliable traveling; the cranes have reliable safety protection devices, like current overload protection device, weight overload protection device, emergency stop device, traveling limit switch, buffers etc.

 double girder gantry crane for sale
Double Girder Gantry Crane

Double girder gantry crane parameters:

  • Lifting Capacity: 5t~500t
  • Span Length: 18~35m
  • Lifting Height: 6~18m
  • Lifting Speed: 1.5~11.5m/min
  • Trolley Traveling Speed: 10~40.1m/min
  • Crane Traveling Speed: 16~50m/min
  • Working Class: A3-A7
  • Provide Custom Option

Get a Free Quote

All our cranes will be tested before leaving the factory and all of them are produced in accordance with strict international standards. We provides warranty and excellent after-safe service, if there is any quality problem during the warranty, we will solve it in time for our clients for free. All the gantry cranes to be delivered are with no damage in appearance and painting. No matter what kind of gantry crane you choose from our company, you will just get the perfect one with top quality and competitive price. To get more details on our garage gantry crane for sale, feel free to contact us now.

Technical Parameter of  AQ-MH Electric Hoist Gantry Crane
Capacity t 3 5 10 16 20
Span S(m) 8~35 8~35 8~35 8~35 8~35
Lifting height m 6~18 6~18 6~18 6~18 6~18
Lifting speed m/min 8(0.8/8) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5) 3.3(0.33/3.3)
Trolley speed m/min 20(30) 20(30) 20(30) 18 14
Crane speed m/min 20(30) 20(30) 20(30) 20(30) 20(30)
Work duty A3~A4 A3~A4 A3~A4 A3~A4 A3~A4
Track type P24 P24 P30 P30  P38 P38 P38  P43
Technical Parameter of  AQ-MG Double Girder Gantry Crane
Capacity t 5 10 16 20 32
Span S(m) 18~35 18~35 18~35 18~35 18~35
Lifting height m 6~18 6~18 6~18 6~18 6~18
Lifting speed m/min 11.5 8.5 7.9 7.2 6
Trolley speed m/min 37.2 37.4 40.1 40 37
Crane speed m/min 37.7 37.7 40.1 40.1 38
Work duty A3-A7 A3-A7 A3-A7 A3-A7 A3-A7
Track type P43 P43 P43 QU70 P43 QU70 P50 QU80
Capacity t 50 75 100 160 200
Span S(m) 18~35 18~35 18~35 18~35 18~35
Lifting height m 6~18 6~18 6~18 6~18 6~18
Lifting speed m/min 5.9 4.7 3.9 3.5 3.5
Trolley speed m/min 31.3 38.2 33.9 22.5 29
Crane speed m/min 44 38.3 32.3 28 28
Work duty A3-A7 A3-A7 A3-A7 A3-A7 A3-A7
Track type QU80 QU80 QU100 QU100 QU100
Capacity t 250 320 400 450 500
Span S(m) 18~35 18~35 18~35 18~35 18~35
Lifting height m 6~18 6~18 6~18 6~18 6~18
Lifting speed m/min 2.2 2.3 1.5 1.5 1.5
Trolley speed m/min 28 16.6 10 10 11.5
Crane speed m/min 50 28 18 18 16
Work duty A3-A7 A3-A7 A3-A7 A3-A7 A3-A7
Track type QU120 QU120 QU120 QU120 QU120
