High quality shipyard gantry crane

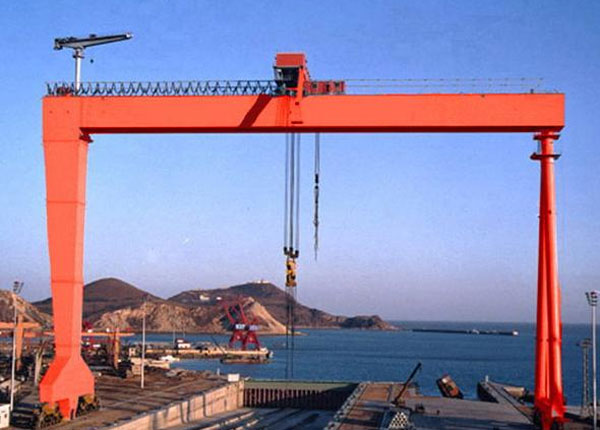

Shipyard Gantry Crane

A shipyard gantry crane is usually designed and used to lift, lower and move heavy items from one position to another. The crane can be applied to lift and handle different kinds of heavy loads, such as large ship parts, heavy ship hull sections, and other types of heavy goods. The gantry cranes used at shipyard can be with single or double beams supported by the supporting legs. To meet different load lifting needs, cranes with different configurations are adopted.

High quality shipyard gantry crane
Shipyard Gantry Crane for Sale

Quality shipyard gantry crane parameters:

  • Lifting Capacity: 5t~500t
  • Span Length: 18~35m
  • Lifting Height: 6~18m
  • Working Class: A5
  • Traveling Speed: 28~45m/min
  • Lifting Speed: 3.5~12.5m/min

Get a Free Quote

How to Choose Reliable Shipyard Gantry Crane

Different from overhead crane, gantry crane runs on a runway at the ground level and most of the gantry cranes are used for outdoor material handling work. The lifting mechanisms can be different when they are used to lift and transport different types of loads. The gantry crane should be selected according to the type of the load to be handled and the lifting capacity to be needed. Work duty also needs to be taken into consideration while choosing the right crane. If the crane will be used for very heavy load handling frequently, the crane with high duty class should be adopted; if the crane will not be often used and applied for medium or light duty material handling work, then the crane with corresponding work duty should be chosen and used.

Shipyard gantry cranes can be equipped with safe and reliable wind-shielding devices, including ground anchor, rail clamp and so on, in order to prevent the attack of heavy wind and storms because of its special work conditions. The supporting legs of the crane can be different, for example, there is one supporting leg on the one side of the crane, and two legs on the other side of the crane as needed. When double girder gantry crane is used and has cantilever, saddle should be set on the crane to meet the structure needs. For single girder crane, there is no need to set the saddle on the top of the crane beam.

Our shipyard gantry cranes are equipped with reliable devices for protection, including overload protection, emergency switch, limiter switch, crane switch and travel end switch, hoist hooks with latch, rubber buggers, protective earthing etc. All these devices are adopted to make sure the crane works efficiently and reliably during the operations and prevent risks and accidents.

U-type gantry crane for sale
U-style Double Girder Gantry Crane

U-frame double girder gantry crane parameters:

  • Lifting Capacity: 10t~50t
  • Span Length: 18~35m
  • Lifting Height: 6~18m
  • Lifting Speed: 5.9~13.3m/min
  • Trolley Traveling Speed: 31.3~40.1m/min
  • Crane Traveling Speed: 40.1~44m/min
  • Working Class: A5-A6
  • Provide Custom Option

Get a Free Quote

No matter single girder or double girder crane, full gantry or semi gantry crane you need, we just supply you with the perfect crane solution to suit your needs. Tell us lifting capacity of crane,  crane work environment, types of materials to be handled and so on, and we will offer you suitable cranes as your options and we are confident that you will be satisfied with your products and excellent service. For further information, please just feel free to contact us by emails.
