Single girder gantry crane for sale

Single Girder Gantry Crane

Single girder gantry crane, as its name suggests, refers to a crane with single main girder and it is used for lifting and transporting materials and goods on different work occasions. The main components of the crane include: main beam, supporting legs, cross beam, crane drive device, electric control, electric hoist etc. It adopts CD, MD or other types of hoists as its lifting mechanism according to different work needs. The gantry crane can also adopt European hoist as its lifting mechanism according to needs, and the crane can be known as European single girder gantry crane or European single girder semi gantry crane. It is mainly used for outdoor and warehouse materials loading, unloading, lifting and transporting. It has two operating ways: cab control and ground control, which are optional as needed.

Classifications of Single Girder Gantry Crane

Single girder gantry crane is widely used to lift and transport heavy items and it can be designed and produced with different configurations according to different work occasions and needs. There are mainly three types of singe girder gantry crane:

1. MH type hoist single girder gantry crane: this kind of crane is applied with electric hoist for many lifting operations. There are box type and truss type gantry cranes, and they can be with or without cantilever according to work environment and needs. Its lifting capacity can be from 3 to 16 ton, span is from 12 to 30 meters, lifting height can be from 3 to 18 meters.

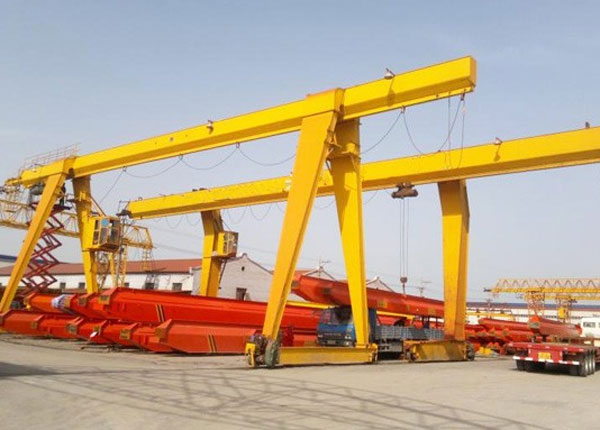

Single girder gantry crane for sale
Ellsen Single Girder Gantry Crane

Single girder gantry crane parameters:

  • Lifting Capacity: 3t~26t
  • Span Length: 12~30m
  • Lifting Height: 6~18m
  • Working Class: A3, A4
  • Traveling Speed: 20~30m/min
  • Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min

Get a Free Quote

Single girder gantry crane for sale
Single Girder Gantry Crane without Cantilever

Single girder gantry crane without cantilever parameters:

  • Lifting Capacity: 3t~26t
  • Span Length: 12~30m
  • Lifting Height: 6~18m
  • Working Class: A3, A4
  • Traveling Speed: 20~30m/min
  • Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min

Get a Free Quote

Truss gantry crane for sale
Single Girder Truss Gantry Crane

Single girder truss gantry crane parameters:

  • Lifting Capacity: 3t~26t
  • Span Length: 12~30m
  • Lifting Height: 6~18m
  • Working Class: A3, A4
  • Traveling Speed: 20~30m/min
  • Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min

Get a Free Quote

2. BMH type hoist single girder gantry crane, compared with MH type gantry crane, this crane only has two supporting legs on one end, and the other end of the crane needs to be supported by building structure and travels along the track on the support structure. This semi gantry crane can also be designed with or without cantilever in accordance with clients’requirements and demands. Its lifting capacity is usually in the range of 1-16 ton, the span is from 5 to 20 meters, and its work temperature is within -20℃ and +40℃.

Semi gantry crane for sale
Single Girder Semi Gantry Crane

Single girder semi gantry crane parameters:

  • Lifting Capacity: 1t~16t
  • Span Length: 5~20m
  • Lifting Height: 6~18m
  • Working Class: A3, A4
  • Traveling Speed: 20~30m/min
  • Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min

Get a Free Quote

3. L type leg single girder gantry crane: this kind of crane can lift heavy items with bigger size to cantilever end. Its lifting capacity is generally from 5 to 50 ton, span is from 18 to 35 meters, lifting height is from 6 to 18 meters and its work duty is usually A5. It is applied on outdoor freight yard and along the railway line to load, unload, lift and transport materials and goods.

L-type single girder gantry crane from Ellsen
L-style Single Girder Gantry Crane

Single girder L-type gantry crane parameters:

  • Lifting Capacity: 5t~50t
  • Span Length: 18~35m
  • Lifting Height: 6~18m
  • Working Class: A4, A5
  • Traveling Speed: 39-48m/min
  • Lifting Speed: 5.9-11.2m/mim

Get a Free Quote

L-type single girder gantry crane for sale
L-shaped Single Girder Gantry Crane without Cantilever

L-type single girder gantry crane without cantilever parameters:

  • Lifting Capacity: 5t~50t
  • Span Length: 18~35m
  • Lifting Height: 6~18m
  • Working Class: A4, A5
  • Traveling Speed: 39-48m/min
  • Lifting Speed: 5.9-11.2m/mim

Get a Free Quote

Features of Single Girder Gantry Crane

  1. The crane has simple and compact structure;
  2. It is easy to install and operate;
  3. It needs less and easy maintenance;
  4. It has light dead weight;
  5. It can be customized according to special work needs;
  6. The crane works reliably and efficiently without failure during lifting work;
  7. It can be used for many different work occasions, including indoor and outdoor occasions;
  8. The crane is supplied with very reasonable price.

No matter what type of gantry crane you need, Ellsen can supply the suitable crane for you with high quality and reasonable price. With decades of crane designing and manufacturing experience, Ellsen is professional and leading gantry crane supplier in China and can provides various kinds of gantry cranes with different configurations to meet customers’ different needs. To know more about single girder gantry crane for sale, please just feel free to contact us and tell us your needs, and we promise to reply you timely and supply you with satisfactory gantry crane solution.

Technical Parameter of  Single Girder Gantry Crane
Capacity t 3.2 5 10 16 20
Span S(m) 12~30 12~30 12~30 12~30 12~30
Lifting height m 6~12 6~12 6~12 6~12 6~12
Lifting speed m/min 0.8/8 0.8/8 0.7/7 0.66/6.6 0.33/3.3
Trolley speed m/min 2~20 2~20 2~20 2~20 2~20
Crane speed m/min 3~30 3~30 3~30 3~30 3~30
Work duty A3~A4 A3~A4 A3~A4 A3~A4 A3~A4
Track type P24 P38 P24 P38 P38 P43 P38 P43 P43

Interested in our gantry crane? or want the best prices?

Technical Parameter of BMH Hoist Semi Gantry Crane
Capacity t 2 3 5 10 16
Span S(m) 5~20 5~20 5~20 5~20 5~20
Lifting height m 6~12 6~12 6~12 6~12 6~12
Lifting speed m/min 0.8/8 0.8/8 0.8/8 0.7/7 0.6/6
Trolley speed m/min 20/30 20/30 20/30 20/30 20/30
Crane speed m/min 20/30 20/30 20/30 20/30 20/30
Work duty A3~A4 A3~A4 A3~A4 A3~A4 A3~A4
Track type P24 P24 P24 P38 P38 P38
Technical Parameter of L-type Single Girder Gantry Crane
Capacity t 5 10 16 20 32 50
Span S(m) 18~35 18~35 18~35 18~35 18~35 18~35
Lifting height m 6~18 6~18 6~18 6~18 6~18 6~18
Lifting speed m/min 11.2 9.6 9.6 7.2 7.6 5.9
Trolley speed m/min 36.6 39.7 39.5 39.3 38.6 38.5
Crane speed m/min 46.2 40.1 40.1 40.1 48.2 39.7
Work duty A5 A5 A5 A5 A5 A5
Track type P43 P43 P43 P43 QU80 QU80
